Your control systems collects a wealth of information, however this information is only available for a few seconds and used to control and monitor your system. Via EVDL you are able to log, analyze and store data from your control system and put it to purpose of predictive maintenance.



Request Information

So it’s a datalogger? Well no, the EVDL is much more than that... besides logging data (up to 1 Tb) from virtually any control system, the EVDL is able to do (real-time) complex calculation and make analyses on datasets to predict degradation or error situations.

Why is this so special? Because degradation occurs over longer periods in time. The device is capable to find trends and situation that might cause system failure. Besides long term analyses it also does real-time FFT and RMS value analyses.

EVDL combines complex tasks with ease of configuration and programming. The device can be linked to 3th party maintenance system or just any (custom) (cloud based) application.

Download EVDL flyer

• Web interface for configuration & visualization
• Ethernet interface
• Native Siemens S7 communication
• OPC-UA client communication
• 32Gb internal flash memory
• Backup battery which enables full operation for at least 5 days without external power supply
• 9 - 24 VDC powersupply required
• Configuration via Bluetooth LE

Options Most common application of the EDVL is to place the EDVL inside an existing control cabinet.

The EDVL has an IP50 qualification hence should be protected. UVS offers standard enclosures including powersupply, wall mount, cable glands and antenna throughput.

Local Analyses

Why should you use up all your bandwidth to transfer RAW data for analyses to your local server? With OpenICM, analyses function are device on your local computer and processing is done locally. This saved a lot of data communication and analyses is done while not even connected to a network.

Typical configuration

Typically the EVDL will be connected the a PLC where data is extracted via the native data communication protocol. For this no alteration of the PLC programming or configuration will be necessary. Communication between EDL and PLC is one way, so the EVDL cannot alter anything inside the PLC is it only reading data.

To overcome security issues and change in the existing IT infrastructure, the EVDL sends data via 3G connection to the desired server or host platform.

ERL sensor units can be connected via HF (High speed Fieldbus) or private LoRa / WiFi to the EVDL and so contribute to the data collection.

Easy setup & monitoring

An EVDL can be configured via web interface or Bluetooth LE. Via the Android APP you will be able to configure but also monitor and retrieve data.

The built-in Bluetooth connector enables local (10 meters max.) configuration and readout via smartphone, tablet or laptop. Field service engineers are able to access logging data, machine documents and maintenance history data.

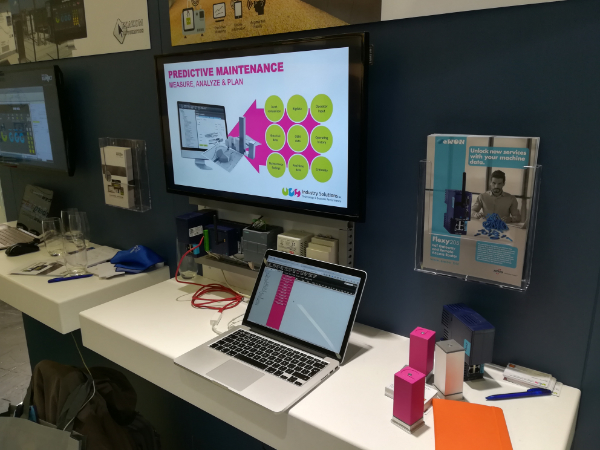

For the second year UVS SMART Maintenance solution can be seen at our partner stand HMS @ Hal 10 SPS2017 Nurnberg. A great show, where we introduced our SMART sensors for predictive maintenance. This device will enable the application of an eWON in high resolution data intensive environments like vibration monitoring.

HMS introduces the NEW eWON flexy that has a smaller building width to enable more easy integration into new an existing control-cabinet arrangements. Our Remote asset management solution can hence be implemented more easy in new and existing machines.

Raster products & UVS Asset Performance Group show how machinebuilders can benefit from remote access and predictive maintenance.

CTO Ronald Kok (UVS-APG) presents how existing remote access systems like eWON will enable new business models. This not only enables new ways of selling, leasing or renting new machines, but also enable to provide new services to a wide variety of installed base machines.

UVS-APG shows a practical approach to predictive maintenance using SMART sensor technology, big data and real-time machine diagnostics.

Smart Predictive Maintenance | TROTS! De samenwerking met UVS Industry Solutions is ondertekend. Raster Products verzorgt vanaf vandaag de distributie van UVS’s smart sensors.

Remote Management is a turnkey solution designed for end-users/facility managers to monitor and control their industrial assets online and thereby allowing them to make better operational decisions faster.

Remotely monitor and control your industrial equipment and installations in the field, from the cloud - anytime, anywhere!

eWON Netbiter is a complete hardware and software solution enabling you to remotely manage your installations online!

The HMS remote management solution consists of a “eWON Netbiter” which is a device you connect to the asset / process measurement and a Cloud service “Argos” that collects and visualizes the data. The Argos screens can easily be integrated into any SCADA or Web application.

How can we help

• Setup the data connections
• Setup logging configuration
• Setup visualization
• Integrate into you SCADA or Maintenance Management / ERP system
• Provide custom dash boarding

During an inspiring dialog Laurens Jan (Boost) takes the viewer through some examples of technologies that enable Predictive Maintenance. UVS Industry Solutions (Eveliene Langedijk) tells about OpenICM SMART sensors and combining information from sources to optimize maintenance performance, CMData ( Han Boin) shows how AR and VR can help execute maintenance, Qimarox (Jaco Hooijer) tells about how they see the future for machine builders.

Watch the complete broadcast..
